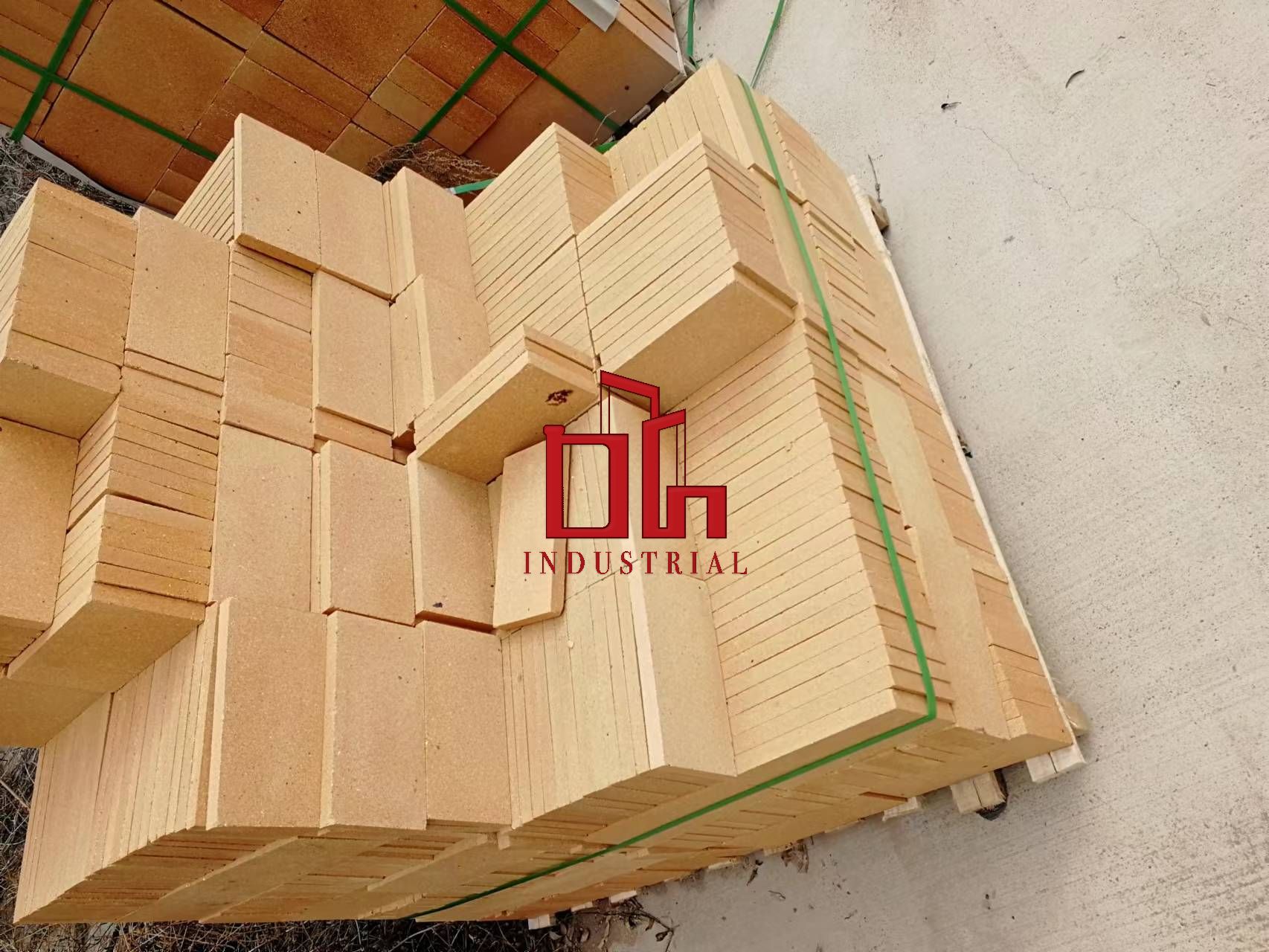

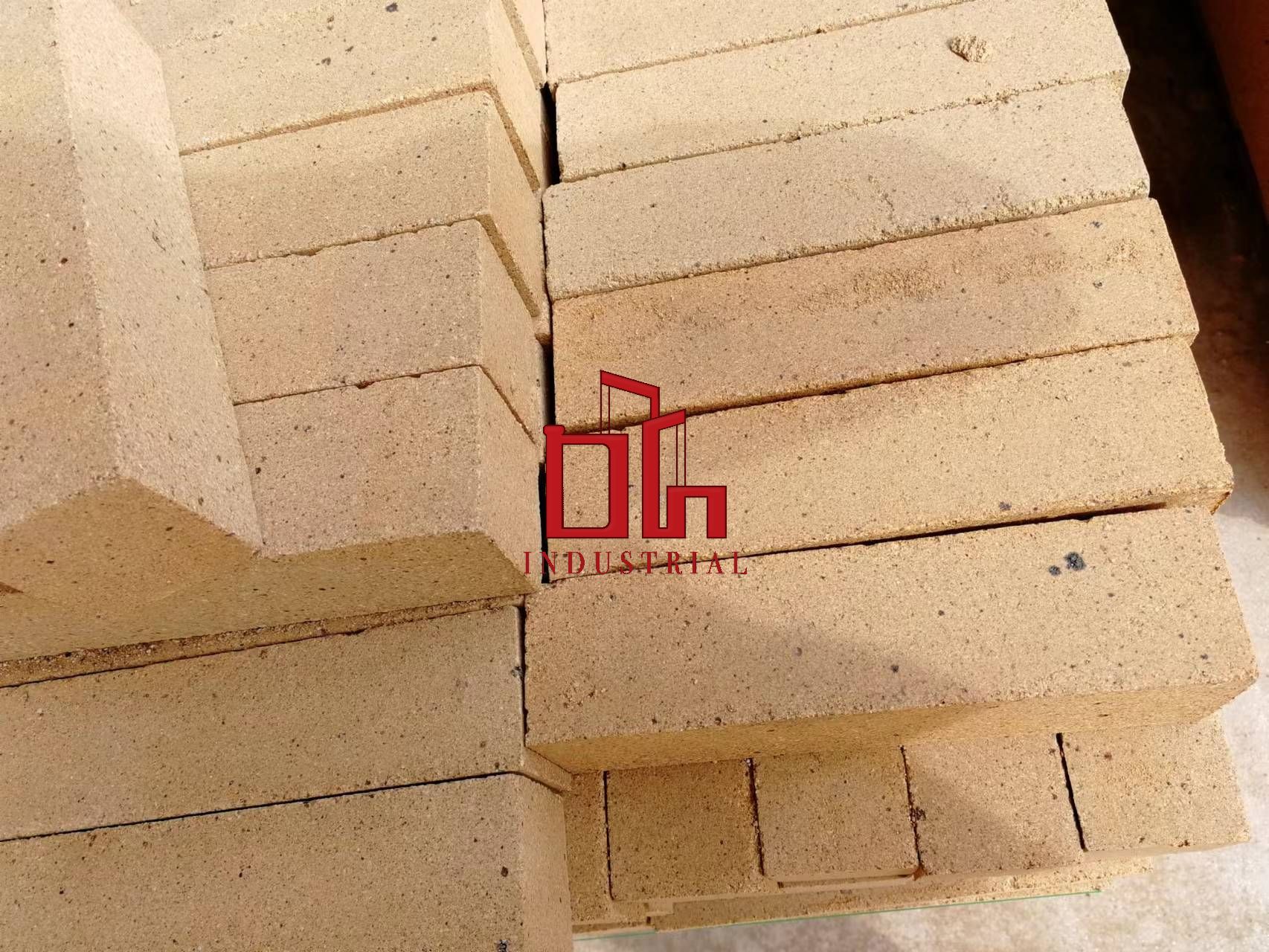

Silica Bricks For Coke Oven

Silica bricks for coke ovens are siliceous refractory products with tridymite as the main crystal phase used for building coke ovens. Modern coke ovens are large-scale thermal equipment built with tens of thousands of tons of refractory materials and nearly a thousand brick types, of which silica bricks account for 60% to 70%. Coke oven silica bricks are used to build coke oven regenerator walls, ramps, combustion chambers, carbonization chambers and furnace roofs, etc.

  • Payment :

    In Advance
  • Product Origin :

    China
  • Shipping Port :

    Shanghai Port
  • Lead Time :

    15 Working days

Product parameters:

Silica bricks for coke oven Furnace bottom, furnace wall Other
SiO2 % ≥ 94.5 94
Al2O3 % ≤ 1.2 1.5
Fe2O3 % ≤ 1.2 1.5
CaO % ≤ 3 3
Na2O+K2O % ≤ 0.35 0.35
Apparent porosity % ≤ 22 24
Normal temperature compressive strength MPa ≥ 35 28
0.2MPa Load softening temperature℃ ≥ 1650
True Density g/cm3  ≥ 2.33
Reburn line change % 1450℃x2h 0-0.2
Coefficient of thermal expansion 1000℃ % ≤ 1.28 1.3



Product feature:

Coke oven silica bricks should have the following characteristics:

(1) The softening temperature under load is high. The coke oven silica bricks must withstand the dynamic load of the coal-loading truck on the furnace roof at high temperatures, and must not deform after long-term use. Therefore, the coke oven silica bricks are required to have a high softening temperature under load. ​

(2) High thermal conductivity. Coke is made from coking coal in the carbonization chamber and heated by conduction through the walls of the combustion chamber. Therefore, the silica bricks used to build the walls of the combustion chamber should have high thermal conductivity. ​

(3) Good thermal shock resistance. Since the coke oven needs to periodically load coal and produce coke, the temperature of the silica bricks on both sides of the combustion chamber wall will change drastically, so the coke oven silica bricks are required to have good thermal shock resistance. ​

(4) High temperature volume stability.

Applications of bricks:

Used for building coke ovens
